Flow Control Valves - Modular Flow Control & Check Valve

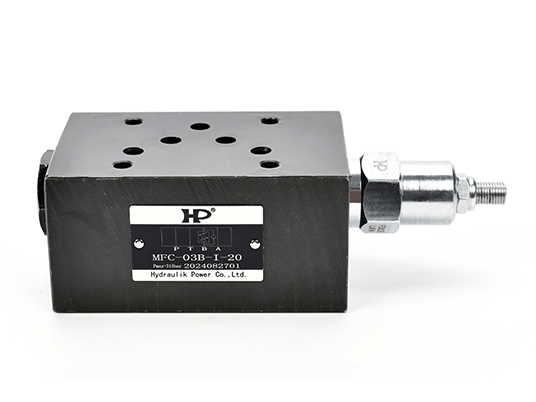

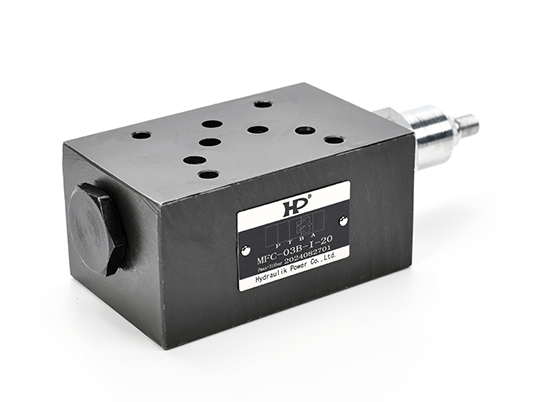

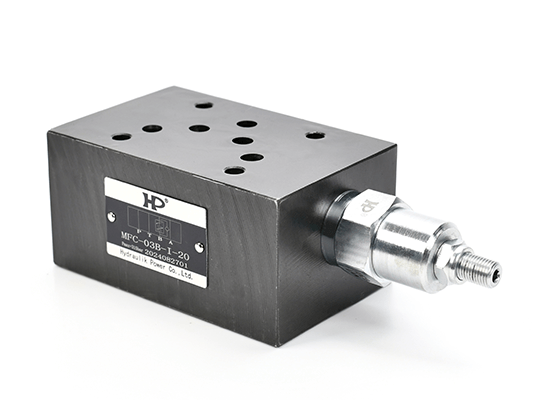

Modular Flow Control & Check Valve

1.MFC series is pressure compensation type superimposed one-way speed regulating valve, can maintain a stable flow, not with the system pressure (load) and change, used in the control of the hydraulic circuit flow, so as to accurately control the speed of the actuator 2 one-way speed regulating valve so that the flow in one direction can be adjusted and the reverse flow can be free

Online Consultation

Product Description

MFC	-02	A	I	-20
1	2	3	4	5

1- Modular Flow Control & Check Valve
2- Nominal size 02:6 ; 03:10; 04:16
3- Function action hole A: hole A; B: hole B; W: A&B holes
4- Control mode blank: export throttle; I: inlet throttle
5- Design code
