MSRF | -03 | P | -1PN | - K | -1 | -A230 | -20 |
1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |

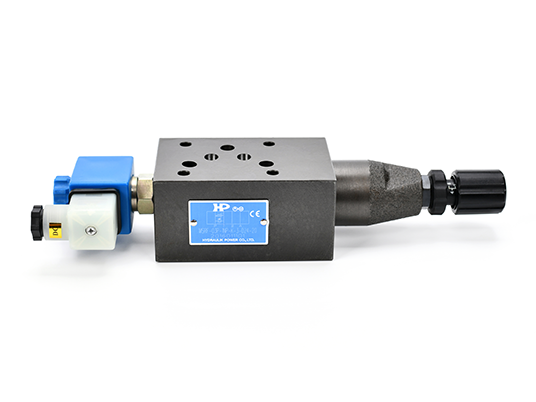

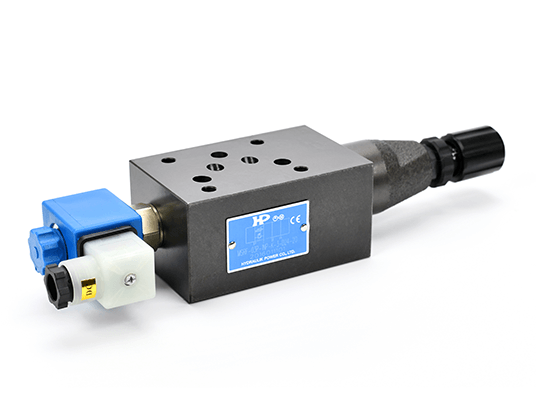

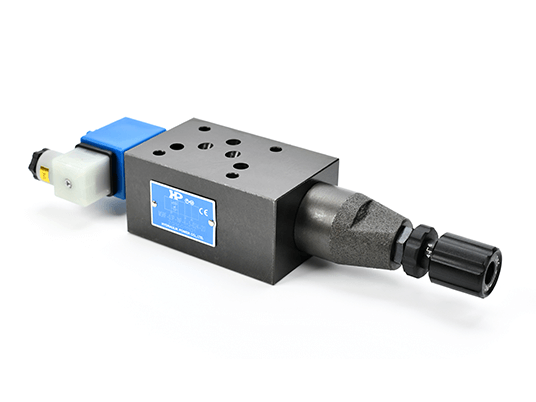

1- Modular solenoid Relief valve
2- Nominal size 03:10
3- Function action hole P:P hole
4- Control mode 1PN: normally open unloading; 1NP: Normally closed pressure
5- Adjusting rod type : without knob attached (customized); K: With plastic knob (standard)
6- Pressure adjustable range 1:8-70bar; 2:35-140bar; 3:70-250bar
7- Coil voltage D12:12V DC; D24:24V DC; A115:115V AC; A230:230V AC
8- Design code
| Maximum pressure | 250 | bar |
| Maximum flow | 70 | L/min |
