Flow Control Valves - Modular Relief Valve

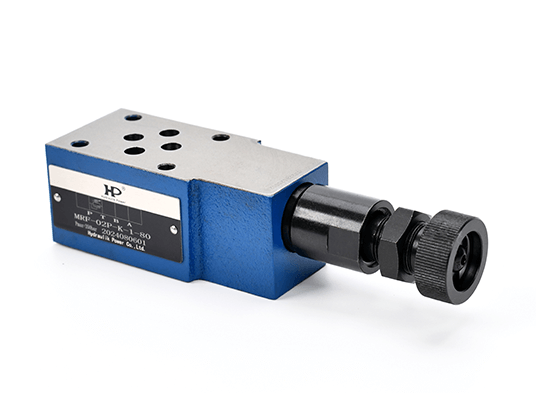

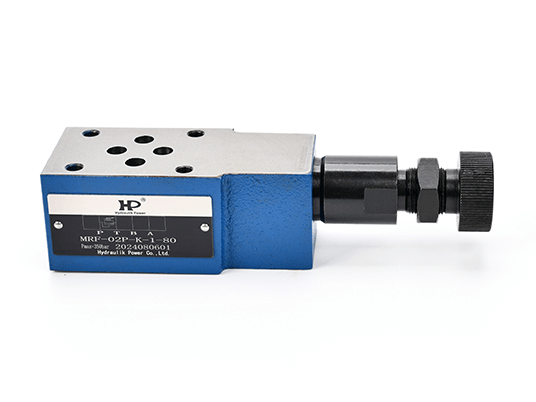

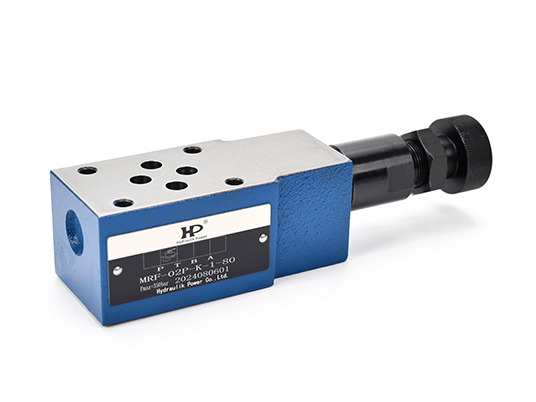

Modular Relief Valve

1. A variety of action options 2 valve body cast iron high strength and durability, long service life 3. Internal hard steel components to improve product life 4. Three pressure range setting options 5. Plastic knob or hex screw two pressure adjustment options

PDF Download Online Consultation

Product Description

MRF	-02	P	-K	- 1	-20
1	2	3	4	5	6

1- Modular relief valve
2- nominal size 01:3 size; 02:6 size; 03:10 size; 04:16 size; 06:20 size;
3- Function port P:P hole; A: A hole; B: B hole; C:A&B port venting to tank; D: A&B port cross over relief
4- adjusting model: without knob (specially made); K: With plastic knob (standard)
5- Pressure adjustable range 1:8-70bar; 2:35-140bar; 3:70-250bar
6- Design number 20: suitable for sizes 01&03&04&06; 40: applicable to size 02 only
