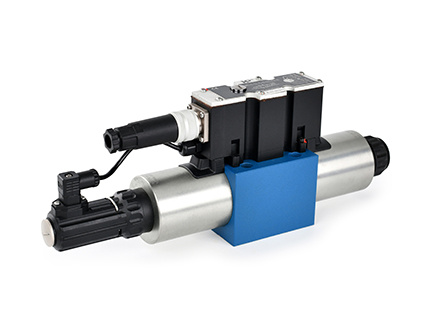

Direct Acting Proportional Directional Valve With Position Feedback

1. Direct control proportional directional valve, with displacement electrical feedback, spool by the spring to the center; 2. Accurate stepless flow regulation (without pressure compensation) and direction control can be realized; 3. Proportional electromagnet with center thread, coil can be separately removed; 4. Used for bottom plate installation, installation surface according to the unified international standard ISO 4401; 5. The magnifying plate adopts digital control, the clamping valve and high temperature will not easily burn the amplifier plate; 6. Electric control device has external type and integrated type, which can be used interchangeably with similar products in Europe and America;

PDF Download Online Consultation

Product Description

4WRE	E	6	- C2	-32	A	- 10	- D24	- K31	- A1	- V	- **
1	2	3	4	5	6	7	8	9	10	11	12

Maximum pressure	315	bar
Maximum flow	180	L/min
Working medium	Mineral oil (HL, HLP) conforming to DIN51524 standard, please consult our company for other oil	/
Recommended viscosity range	20 to 380mm2/s (30 to 46mm2/s is preferred)	/
Oil contamination	The highest pollution level is according to NAS1638 level 9 or ISO4406 level 20/18/15	/
