Pressure Control Valves - Low Noise Pilot Solenoid Controlled Relief Valve

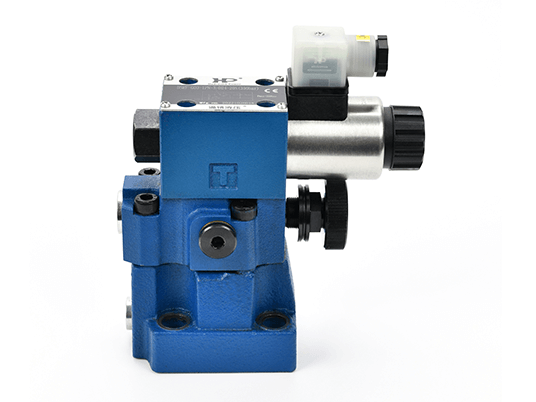

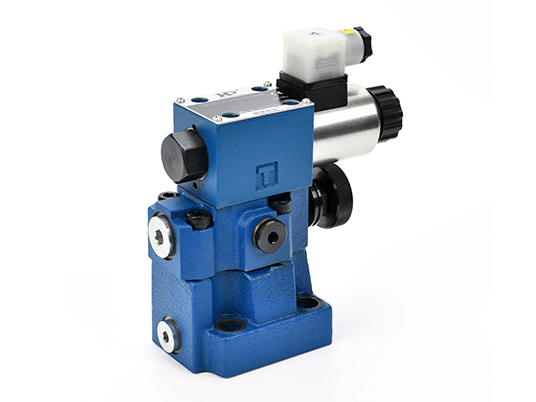

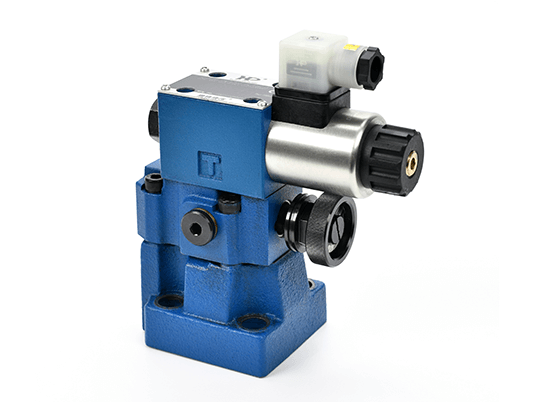

Low Noise Pilot Solenoid Controlled Relief Valve

1. It has the characteristics of high working pressure, large flow rate and fast reaction speed 2. The pump can be unloaded by electrical signal 3. The pilot relief valve is used to control the hydraulic system in two ways

PDF Download Online Consultation

Product Description

A	-DSRF	-G	03	-1PN	-1	- A240	- 20
1	2	3	4	5	6	7	8

1- A: with anti-impact valve
Blank: no shock valve (standard)
2- Low noise pilot operated solenoid control relief valve
3- Installation mode G: plate installation
4- Nominal size: 03:10; 06:20; 10:32
5- Control mode 1PN: normally open unloading; 1NP: Normally closed to maintain pressure
6- Pressure regulation range: 1:0-100bar; 2:0-200bar; 3:12-350bar
7- Coil voltage see table below
8- Connection mode 10: terminal box with indicator light; 20: plug-in connector with indicator light.
