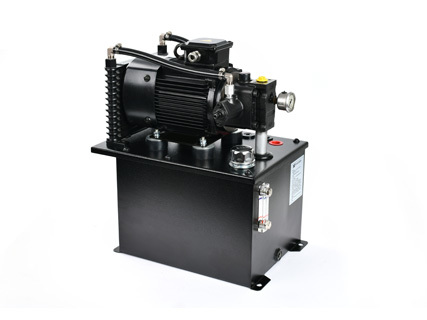

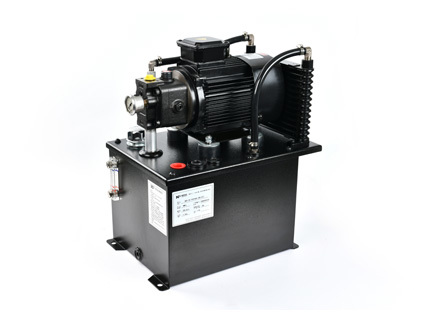

Compact Hydraulic Pump Station

1. The tank is standardized, miniaturized, light in weight and small in space 2. Hydraulic pump new structure design, low noise. 3 hydraulic pump with a check valve, no additional check valve, save cost and space 4 hydraulic pump precision, sensitive response, response characteristics only 0.2~0.3 seconds to complete the pressure regulation 5. Easy installation of oil circuit block, directly fixed in the hydraulic pump oil outlet, circuit selection is diversified 6. The main pressure gauge can be directly installed on the back cover of the hydraulic pump, saving installation costs

PDF Download Online Consultation

Product Description

NSP	-10	-07	V	08	A2	- 380	- F2	T	- A13
1	2	3	4	5	6	7	8	9	10

1- Compact hydraulic pump station
2- Tank capacity 10L; 20L; 30L
3- Motor power 07:0.75 kW; 15:1. 5 kW; A vigorous. 2 kW
4- Pump type variable vane pump
5- Geometric Displacement code (ml/rev.) 08; 12. 16. 23
6- Pressure regulation range A1:8-20bar; A2:15-35bar; A3:30-55bar; A4:50-80bar
7- 380 voltage range: 50/60 Hz, 380 v / 220 v / 50/60 Hz; 400:400V/50Hz,415V/50Hz
8- Marked options (in alphabetical order) Blank: valveless block; F※ Valve block; R※ Valve block (please refer to optional valve block form for details) "Control valve or valve cover plate needs to be ordered separately" for details, please refer to Yongzhen hydraulic comprehensive sample or contact our engineer
9- T: Thermometer attached to oil level gauge
10- Design code
