Pressure Control Valves
精准调压，守护系统稳定运行
MPS | -02 | A | -K | -I | -P | -20 |
1 | 2 | 3 | 4 | 5 | 6 | 7 |

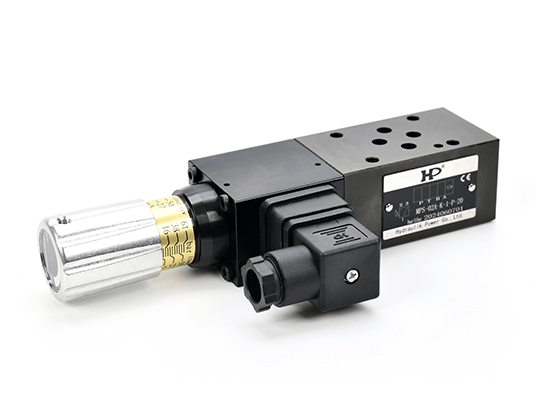

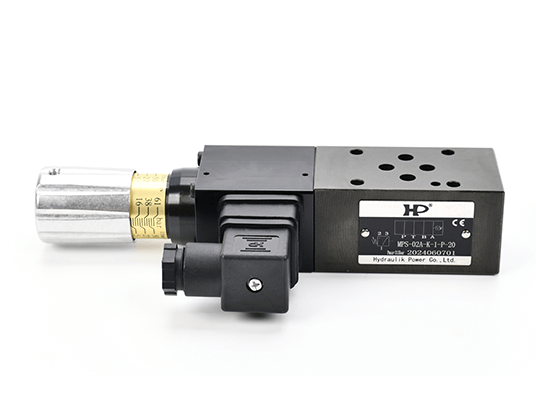

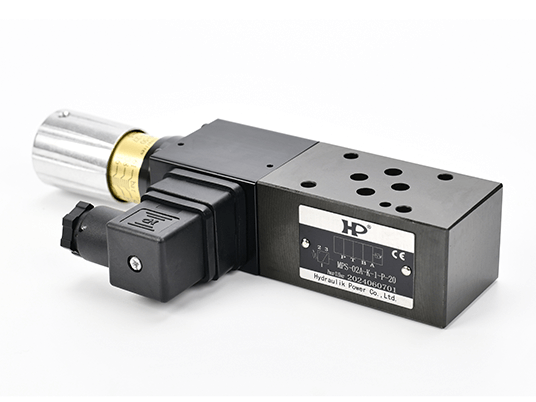

1- Modular Pressure Switch
2- Nominal size 02:6 ; 03:10
3- Functional action hole P:P hole; A: hole A; B: hole B; W: kathi Jones from A&B holes
4- Adjusting rod type : without knob (standard); K: With plastic knob (customized)
5- Pressure adjustable range 1:5-70bar; 2:10-125bar; 3:25-250bar
6- Direction of bent plug P: bent plug in the P hole side; T: The bent plug is on the side of the T hole
7- Design code
| Maximum pressure | 315 | bar |
| Maximum flow | 70 | L/min |
