Pressure Control Valves
精准调压，守护系统稳定运行
|
MSPR |
-02 |
P |
-1 |
- K |
-1 |
-A230 |
-20 |
|
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |

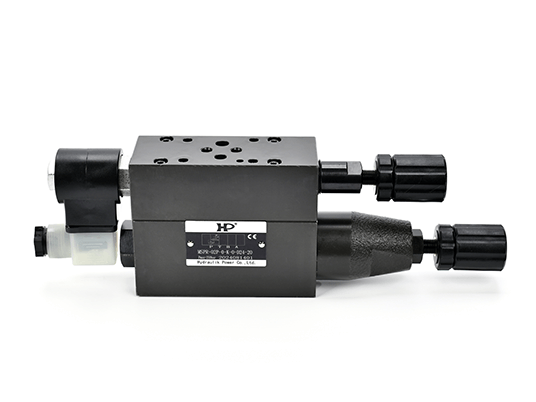

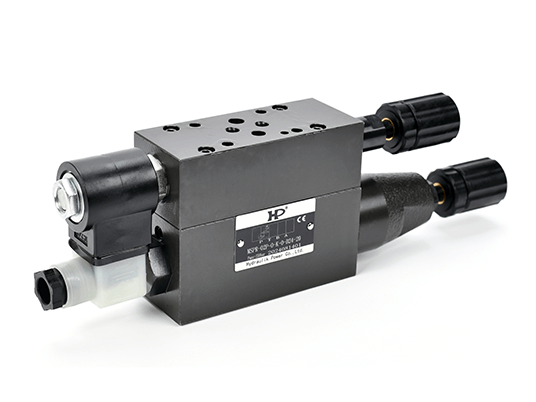

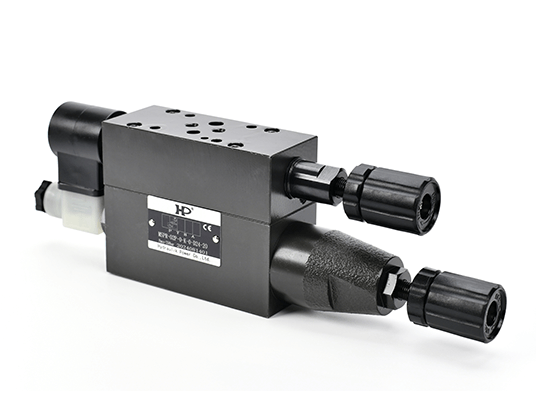

1- Modular solenoid pressure reducing valve
2- Nominal size 02:6 ; 03:10
3- Function action hole P:P hole
4- High pressure range 0:1.5-35bar; 1:8-70bar; 2:35-140bar; 3:70-250bar
5- Adjusting rod type blank: no knob attached (customized); K: With plastic knob (standard)
6- Low pressure pressure range 0:1.5-35bar; 1:8-70bar; 2:35-140bar; 3:70-250bar
7- Coil voltage D12:12V DC; D24:24V DC; A115:115V AC; A230:230V AC
8- Design code
| Maximum pressure |
250 |
bar |
| Maximum flow |
70 |
L/min |
