Pressure Control Valves
精准调压，守护系统稳定运行
MPR | -02 | P | -K | - 1 | -20 |
1 | 2 | 3 | 4 | 5 | 6 |

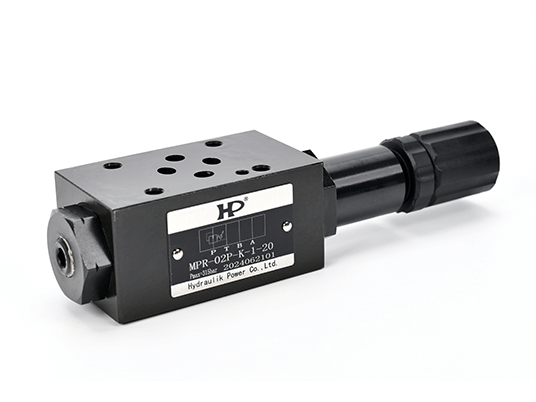

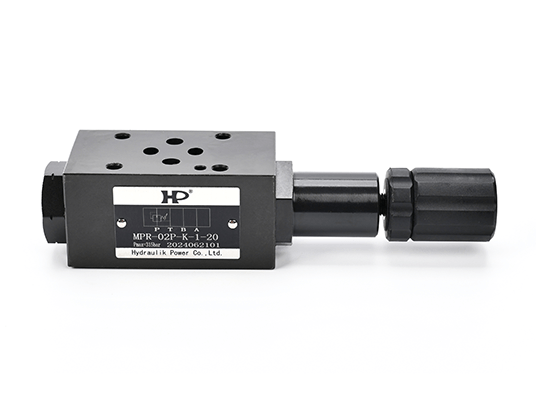

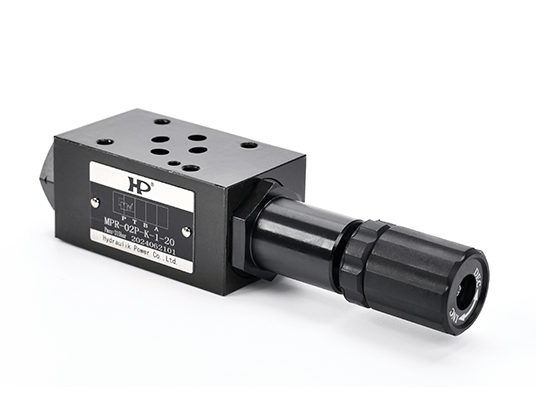

1- Modular pressure reducing valve
2- Nominal size 02:6 ; 03:10; 04:16 ; 06:20 ;
3- Functional action hole P:P hole; A: hole A; B: B holes
4- Adjusting rod type blank: no knob attached (customized); K: With plastic knob (standard)
5- Pressure adjustment range 0:1.5-35bar; 1:8-70bar; 2:35-140bar; 3:70-250bar
6- Design code
| Maximum pressure | 310 | bar |
| Maximum flow | 300 | L/min |
