Directional Control Valves
高压稳流静音精密，防水防尘抗污耐用，多元接线适配严苛工况
MPC | -02 | A | -05 | - 40 |
1 | 2 | 3 | 4 | 5 |

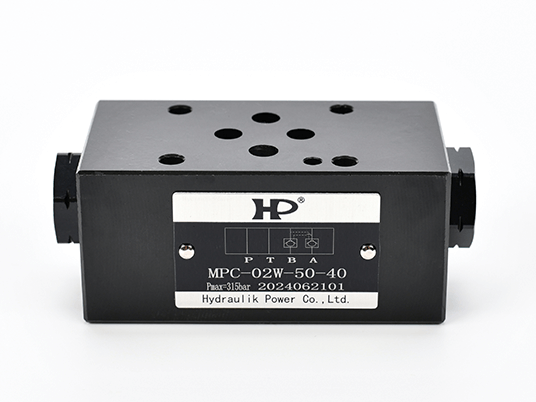

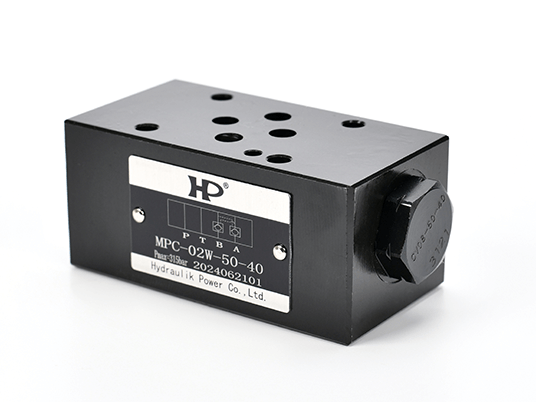

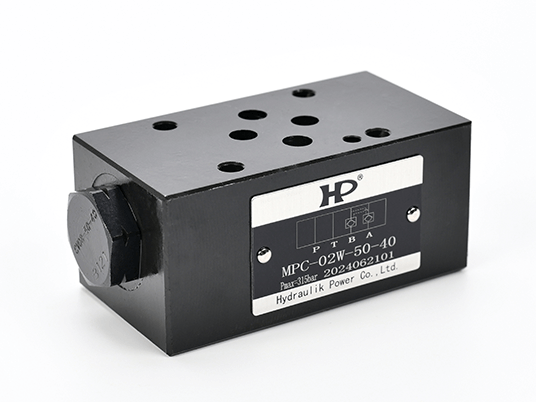

1- Modular pilot check valve
2- Nominal size 02:NG6 ; 03:NG10 ; 04:NG16 ; At 06:NG20
3- Function action hole A: Hole A; B: Hole B; W:A&B hole
4- Opening pressure 05:0.35bar; 50:3.5 BAR (standard type)
5- Design code
| Maximum pressure | 315 | bar |
| Maximum flow | 300 | L/min |
