Directional Control Valves
高压稳流静音精密，防水防尘抗污耐用，多元接线适配严苛工况
MSCC | -02 | A | -D24 | -NC | -20 |
1 | 2 | 3 | 4 | 5 | 6 |

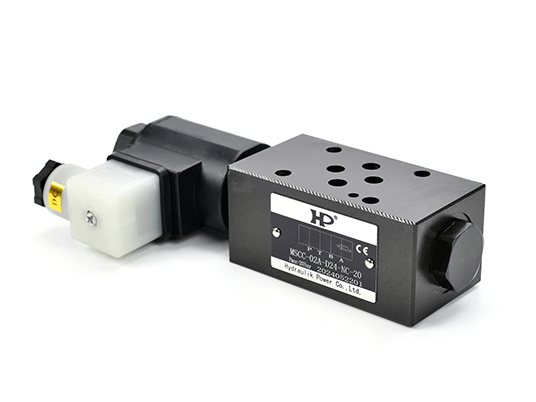

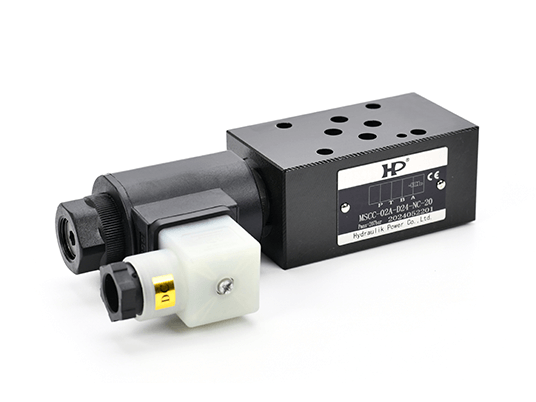

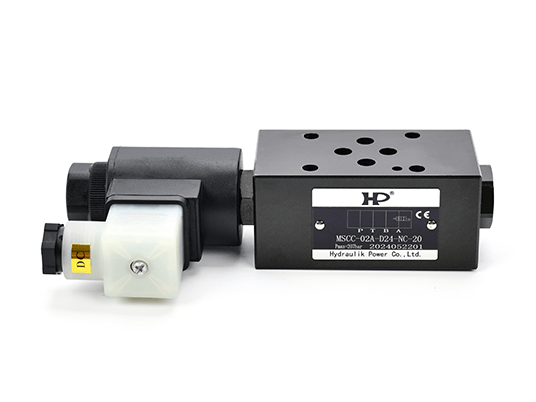

1- Modular solenoid double direction two way valve
2- Nominal size 02:NG6 ; 03:NG10
3- Function action hole A: Hole A; B: Hole B; W:A&B hole
4- Coil voltage D12:12V DC; D24:24V DC; A115:115V AC; A230:230V AC
5- Control mode NO: normally open unloading; NC: Normally closed to maintain pressure
6- Design code
| Maximum pressure | 240 | bar |
| Maximum flow | 40 | L/min |
