Directional Control Valves - Pilot Controlled Check Valve

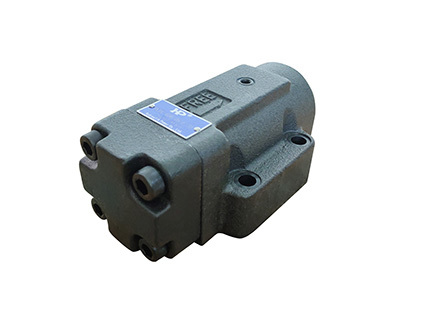

Pilot Controlled Check Valve

This type of valve allows the flow of fluid to flow in one direction at a set opening pressure when the hydraulic control pressure is applied. The liquid flow can flow freely in reverse.

PDF Download Online Consultation

Product Description

PC(D)V	- G	03	- 05	- ET	- 30
1	2	3	4	5	6

1- PCV: pilot control check valve
PCDV: Pressure relief type pilot control check valve
2- Installation mode G: subplate mounted type; T: threaded connection type (order products need to consult in advance)
3- nominal size 03:10 size; 06:20 size; 10:32 size
4- Opening pressure: 05:0.35bar; May. 5 bar
5- Control mode E: external control internal leakage; ET: external control leakage
6- Design number 30: one side for the side cover, one side for the hexagonal head (standard)(G06 only specifications); 20: Both sides are side covers (special products)
